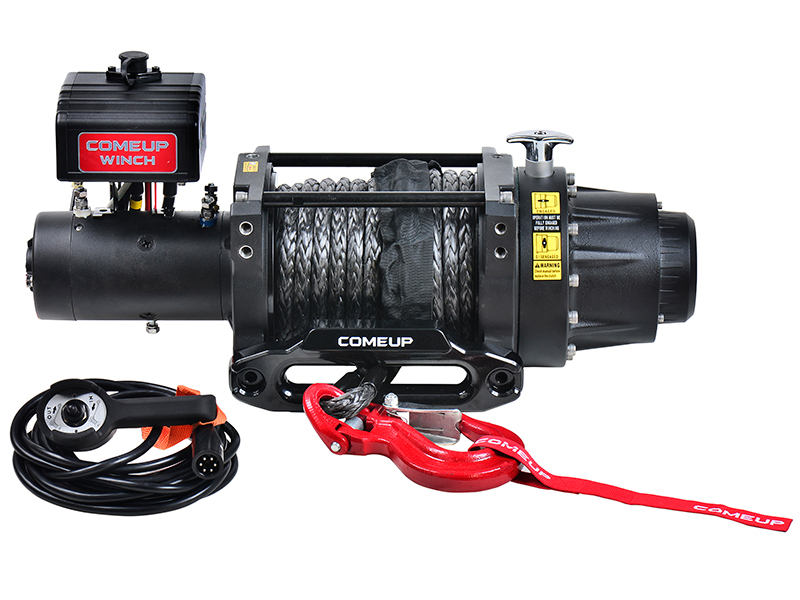

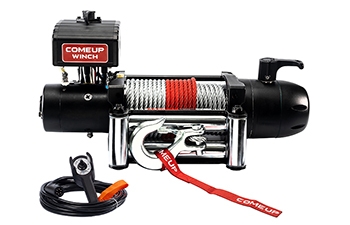

Seal Gen2 20.0s
9.1 Tonnes Severe Duty Winch
- 12V DC severe duty winch rated at 20,000 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
- 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
- Water-proof remote control with thermometric LED indicator w/5 m cord
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
- The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.
SPECIFICATIONS
- Part number: PN 295217 (12V)
- Rated line pull: 9,072 kg / 20,000 lb single line
- Line speed ( 1st layer): 4.5 mpm / 14.8 fpm 60A at 12V no load
0.4 mpm / 1.3 fpm 410A at 12V full load - Motor: 5,220 w / 7.0 hp 12V series wound
- Gear train: 3-stage planetary 343:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 89 mm x 204L mm (3.5" x 8"L)
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Rope type: Synthetic rope
- Rope size: 14 mm x 16.7 m (9/16" x 55’)
- Mounting bolt pattern: 254 mm x 114.3 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5") - Mounting: Foot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706
PERFORMANCE DATA
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| 12V | ||
| No load | 4.5 / 14.8 | 60 |
| 1,814 / 4,000 | 2.1 / 6.9 | 150 |
| 3,629 / 8,000 | 1.8 / 5.9 | 190 |
| 4,536 / 10,000 | 1.4 / 4.6 | 260 |
| 7,484 / 16,500 | 1.1 / 3.6 | 340 |
| 9,072 / 20,000 | 0.4 / 1.3 | 410 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 9,072 / 20,000 | 4.6 / 14.9 |
| 2nd | 7,133 / 15,725 | 10.3 / 33.9 |
| 3rd | 5,877 / 12,956 | 16.7 / 55.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three(3) years warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

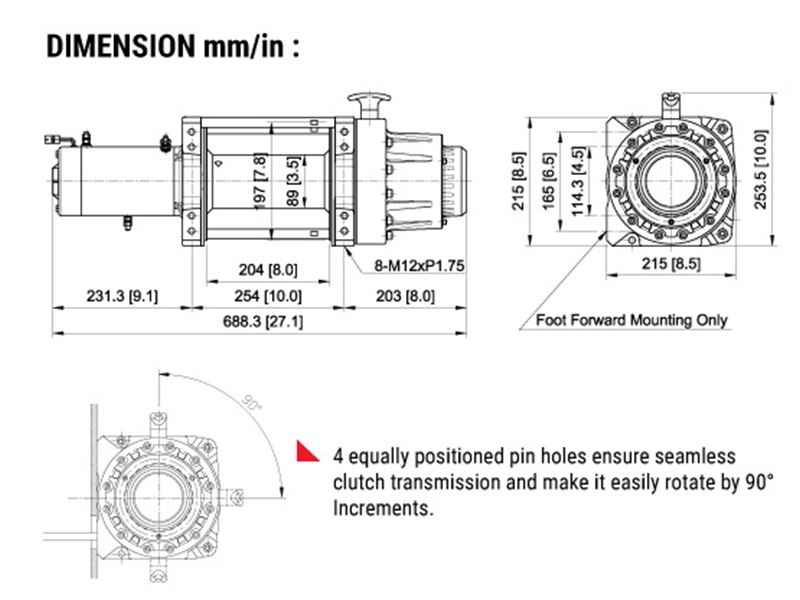

DIMENSION in mm/ in
ACCESSORIES
Standard Accessories:
- Hawse fairlead
- Remote control w/5 m (17’) cord
- Detachable control box
- Synthetic rope w/sling hook
- 1.8 m (6’) 2 gauge battery lead
- Handsaver strap
PACKAGE
- Winch weight (including rope) : 49.6 kg / 109.3 lb
- Gross weight : 63.6 kg / 140.2 lb
- Box dimension, (L x D x H) : 740 x 270 x 495 mm (29.1" x 10.6" x 19.5")
