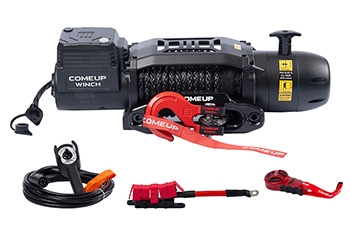

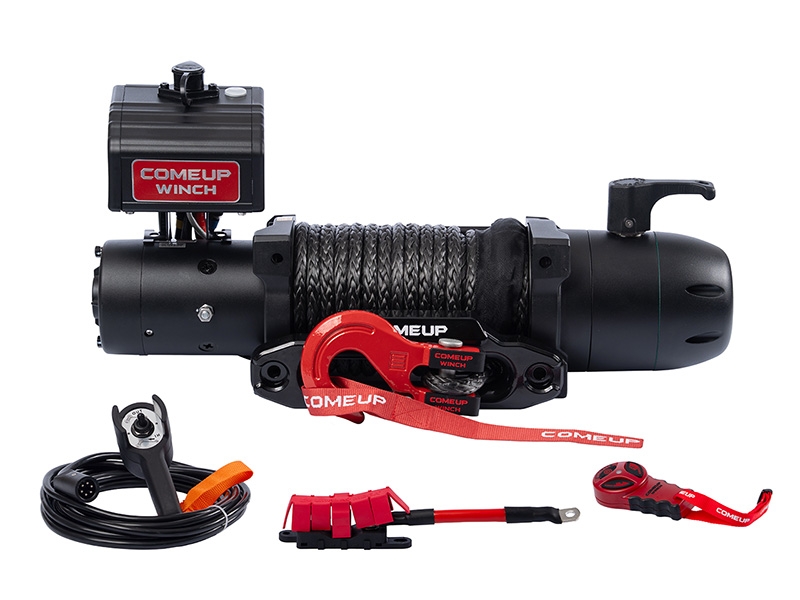

Slim 12.5rs Trail Edition
5.6 Tonnes Severe Duty Winch
Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection.
- 12V DC severe duty winch rated at 12,500 lbspulling meets or exceeds your expectations.
- The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
- Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch.

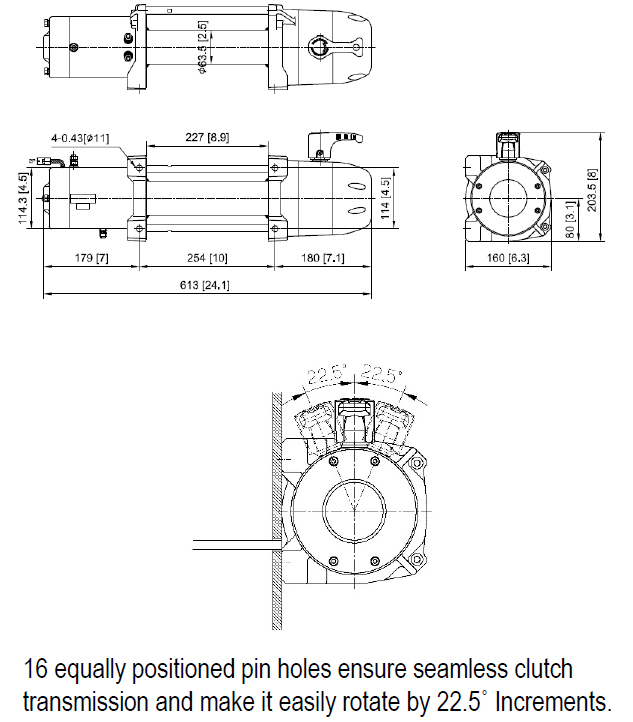

- New clutch lever kit is easy to engaged and disengaged. 16 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- waterproof remote control.
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- The U.S., Germany, U.K., France, etc. patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
- BossHook M made of strong SCM440 alloy steel, MBS 14,500 KG.
- The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
- Built-in wireless control module includes functions:
- On/Off switch prevents the vehicle battery from draining when no use
- Motor over-heating warning by LED indicators and beeper
