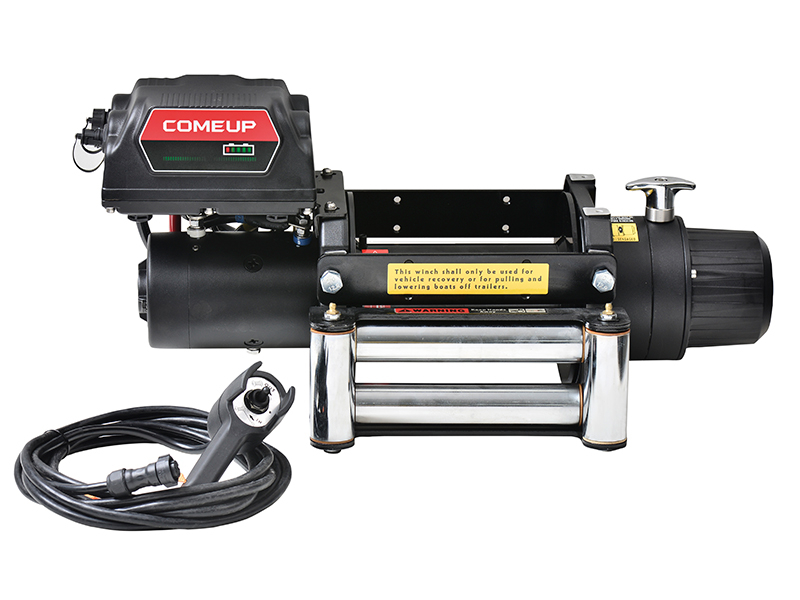

Rhino 8 Pro

Reliable electric winch for commercial, industrial and severe duty applications
3,430w/12V or 1,940w/24V series wound motor.
Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
LED Indicator displays detailed winch status while operating.
Low voltage detecting function reminds operator vehicle battery status.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.

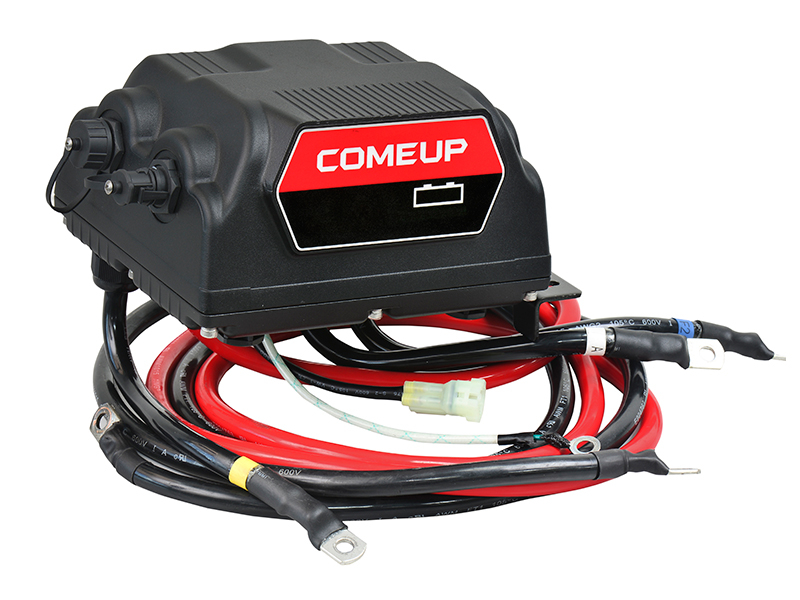

Submersible sealed contactor handles high amps and allows higher duty cycle.
Meets SAE J706, CE Machinery Directive 2006/42/EC, and EN 14492-1 standards

What's News Link:KAIZEN: Rhino Pro Series Electric Recovery Winches

Part number: PN 850318 (12V) / PN 850326 (24V)
Rated line pull: 3,630 kg / 8,000 lb single line (SAE J706 rating)
3,560 kg (EN 14492-1 rating)
Motor: 3,430 w / 4.6 hp 12V series wound
1,940 w / 2.6 hp 24V series wound
Gear train: 3-stage planetary 211:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 90 x 205 mm (3.5” x 8.1")
Rotation of winch: Wire rope shall be under-wound orientation only
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord

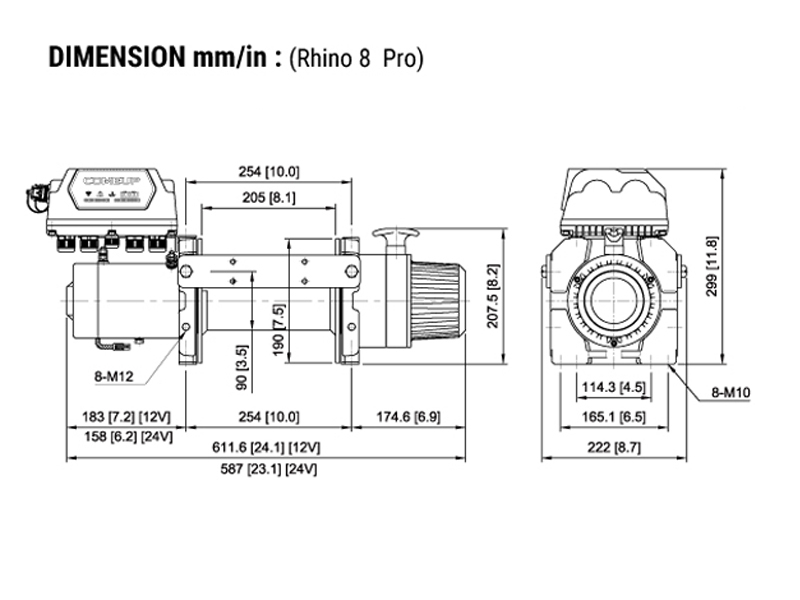

Mounting bolt pattern: 254 x 114 mm (10” x 4.5”)
254 x 165 mm (10" x 6.5")
Wire rope recommended:
* 10 mm x 22.6 m, 1,960 N/mm² grade with a minimum breaking strength of 69.8 kN required for EN 14492-1 rating.
* 3/8" x 100', EIPS grade with a minimum breaking strength of 15,663 lbf required for SAE J706 rating

The working coefficient for the first rope layer on the drum shall be at least 2.
The D/d ratio to the center of the rope shall be at least 10 for the drum.
Drum freeboard shall be at least 1.5 x rope diameter.

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.
