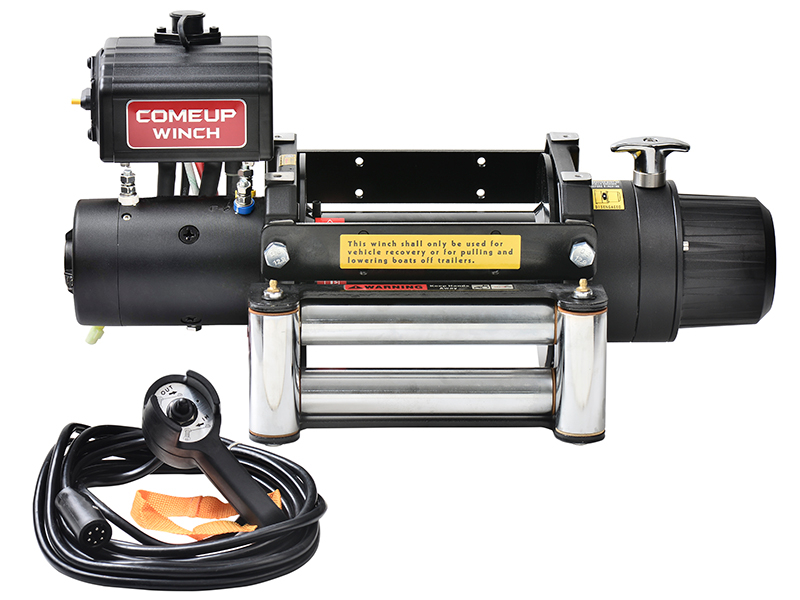

Rhino 8
3.5 Tonnes Electric Recovery Winch
- Reliable electric winch for commercial, industrial and severe duty applications
- 3,430w/12V or 1,940w/24V series wound motor.

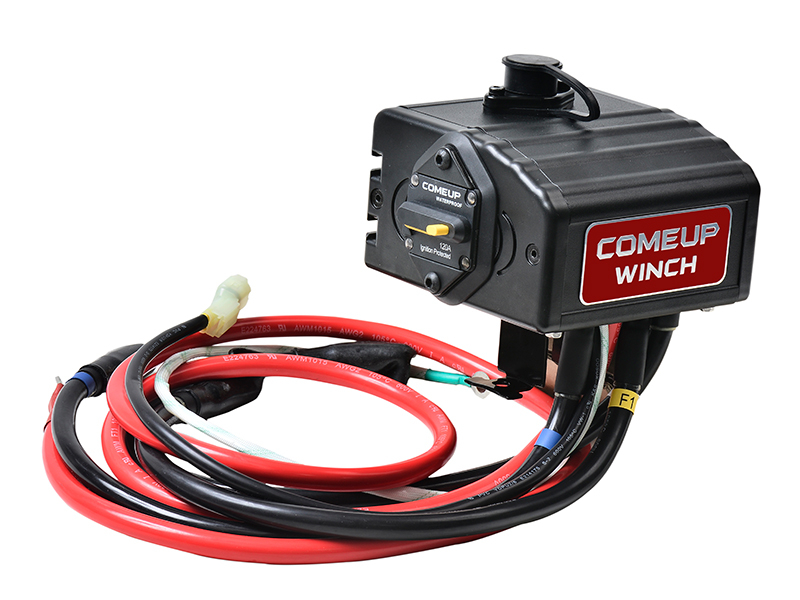

- Over-load protector build-in the control box prevents the overloading of the winch
- Waterproof remote control with thermometric LED indicator alerts when the motor is over-heated.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Submersible sealed contactor handles high amps and allows higher duty cycle
- Meets SAE J706, CE Machinery Directive 2006/42/EC, and EN 14492-1 standards
SPECIFICATIONS
- Part number: PN 850812 (12V) / PN 850824 (24V)
- Rated line pull: 3,630 kg / 8,000 lb single line (SAE J706 rating)
3,560 kg (EN 14492-1 rating) - Motor: 3,430 w / 4.6 hp 12V series wound
1,940 w / 2.6 hp 24V series wound - Gear train: 3-stage planetary 211:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum

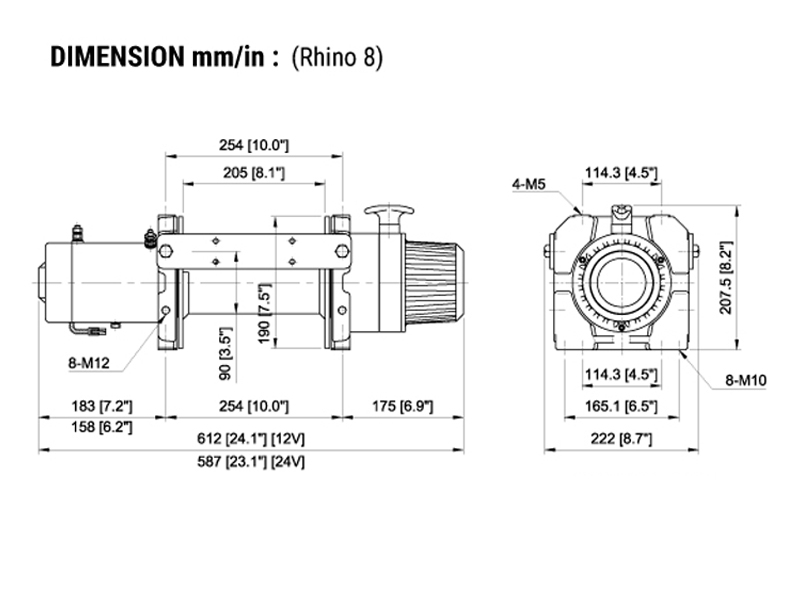

- Drum size: 90 x 205 mm (3.5” x 8.1")
- Rotation of winch: Wire rope shall be under-wound orientation only
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Mounting bolt pattern: 254 x 114 mm (10” x 4.5”)
254 x 165 mm (10" x 6.5") - Wire rope recommended:
* 10 mm x 22.6 m, 1,960 N/mm2 grade with a minimum breaking strength of 69.8 kN required for EN 14492-1 rating.
* 3/8" x 100', EIPS grade with a minimum breaking strength of 15,663 lbf required for SAE J706 rating
Compliant with EN 14492-1 requirements for recovery winches:
- The working coefficient for the first rope layer on the drum shall be at least 2.
- The D/d ratio to the center of the rope shall be at least 10 for the drum.
- Drum freeboard shall be at least 1.5 x rope diameter.
