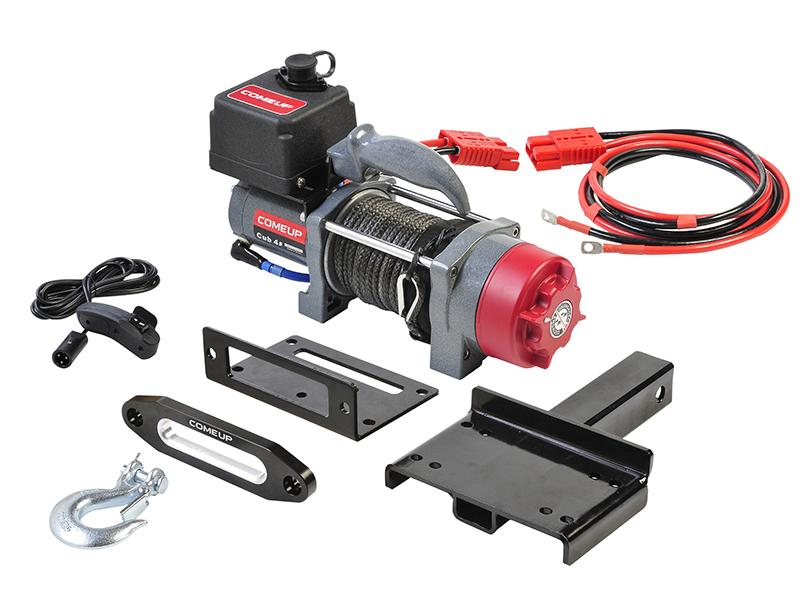

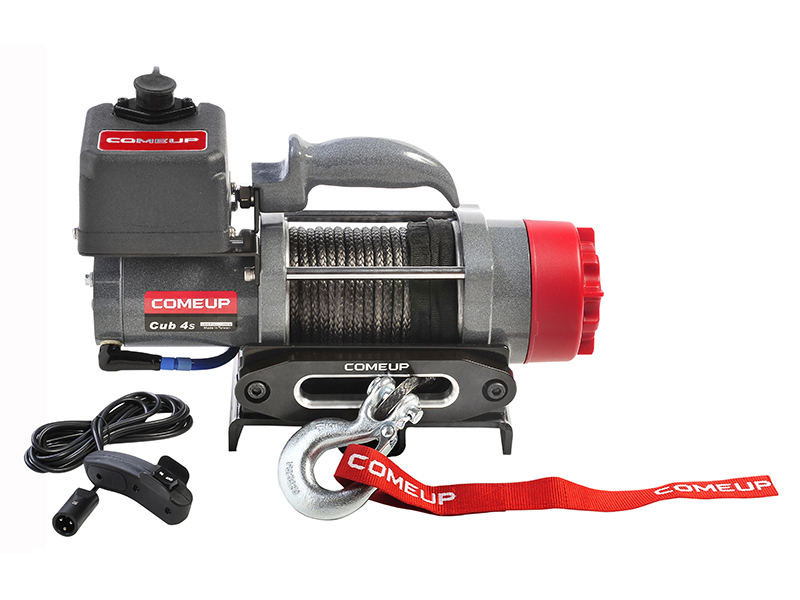

Cub 4s carry on

High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is easy for front of vehicle.
2” rear receiver and quick connector wiring kits for rear of vehicle.
Winch drum centered avoids tire interference of rope and provides streamlined appearance.
Mechanical spring applied and permanent magnet motor dynamic brakes together.
Cam activated clutch device for rapid wire rope payout.
12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
Submersible sealed contactor handles high amps and allows higher duty cycle.

Part number: PN 123930
Rated line pull: 1,814 kg (4,000 lb) single line
Line Speed (1st layer) : 4.6 mpm / 15.1 fpm 30 A at no load
2.0 mpm /6.6 fpm 230 A at full load
Motor: 800 w / 1.0 hp 12V permanent magnet
Gear ratio: 3-stage planetary 191:1
Clutch (freespooling): Sliding pin and ring gear
Brake: Mechanical spring applied and permanent magnet motor dynamic brakes together
Winch construction: Aluminum die cast housings and drum

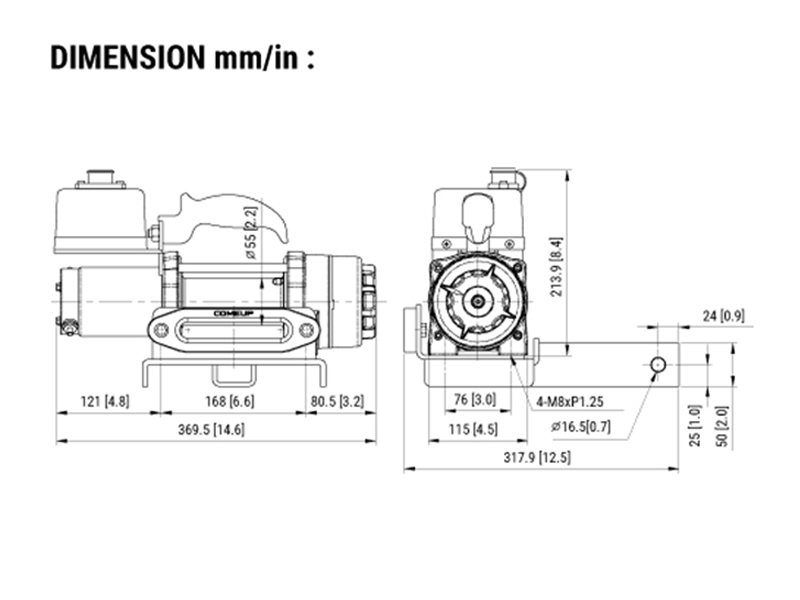

Drum size: 55 x 119 mm (2.2” x 4.7”)
Control: Remote control w/3 m cord
Rope type: Synthetic rope
Rope size: 5.5 mm x 15.2 m (7/32” x 50’)
Mounting bolt pattern: 76 x 168 mm (3” x 6.6”)

Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.
