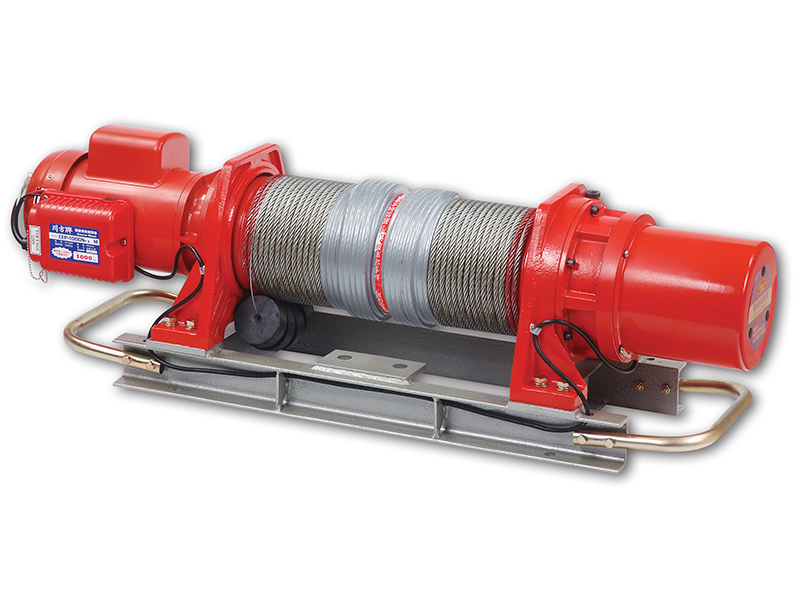

CEP-1000(S)
- Double Ropes
SPECIFICATIONS
|
Model number |
Single phase |
CEP-1000S- |
||||
|
Three phase |
CEP-1000- |
|||||
|
Double fall load |
kg |
1,000 |
||||
|
Double fall speed |
M/min |
7.5 |
||||
|
Motor |
hp x P |
2 hp x 4 P |
||||
|
Power Source |
1ø 50Hz |
220/230/240V |
||||
|
3ø 50Hz |
380/400/415V |
|||||
|
Lifting height |
M |
5 |
8 | 14 | ||
|
Wire rope |
ø mm x M |
8 x 16 |
8 x 22 | 8 x 34 | ||
|

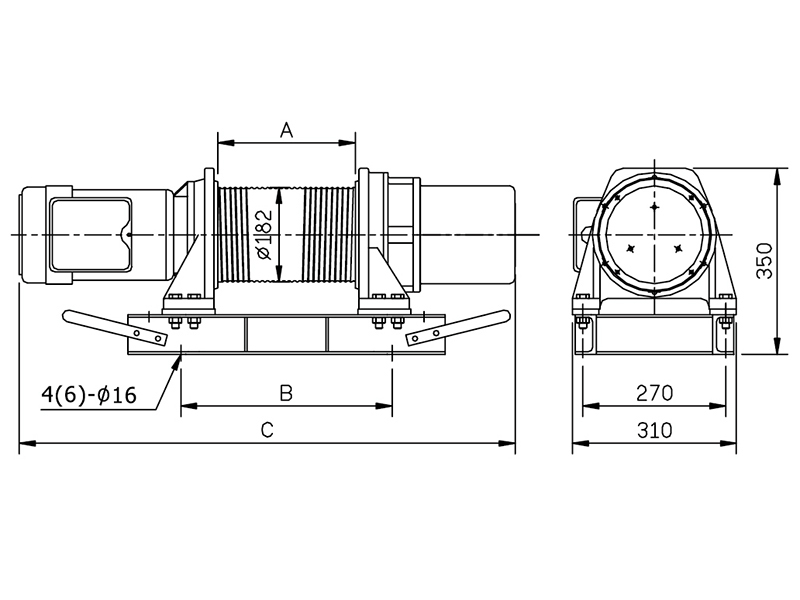

Dimension |
A mm |
470 |
670 | 1070 | ||
|
B mm |
600 |
800 |
1200 |
|||
|
C mm |
1150 |
1350 |
1750 |
|||
|
Net weight |
kg |
111 |
126 | 156 | ||
|
Gross weight |
kg |
151 |
166 | 196 | ||
Means Lifting Height
Note:
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- 60 Hz motor is available upon request.
- Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%.
