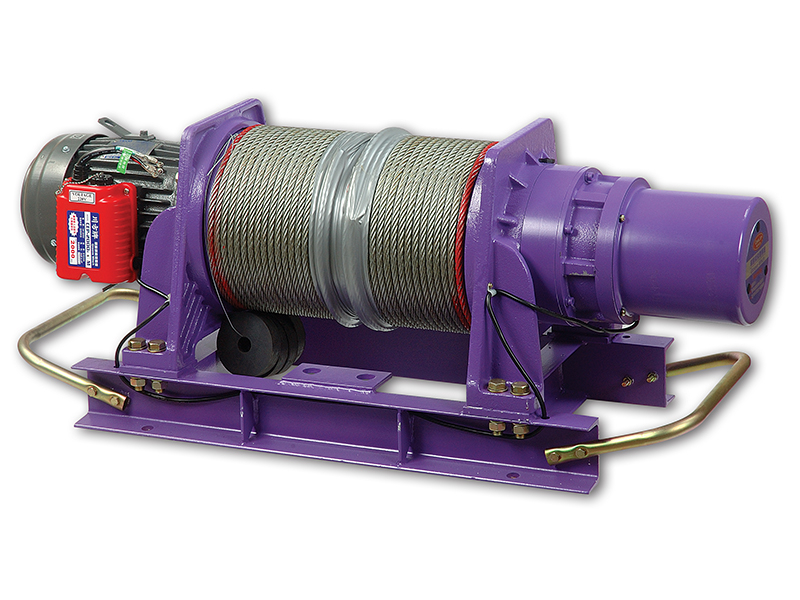

CEP-2000
- Double Ropes
SPECIFICATIONS
|
Model number |
Three phase |
CEP-2000- |
||||
|
Double fall load |
kg |
2,000 |
||||
|
Double fall speed |
M/min |
5.1 |
||||
|
Motor |
hp x P |
3 hp x 4 P |
||||
|
Power Source |
3ø 50Hz |
380/400/415V |
||||
|
Lifting height |
M |
5 |
8 | 14 | ||
|
Wire rope |
ø mm x M |
10 x 16 |
10 x 22 | 10 x 34 | ||
|

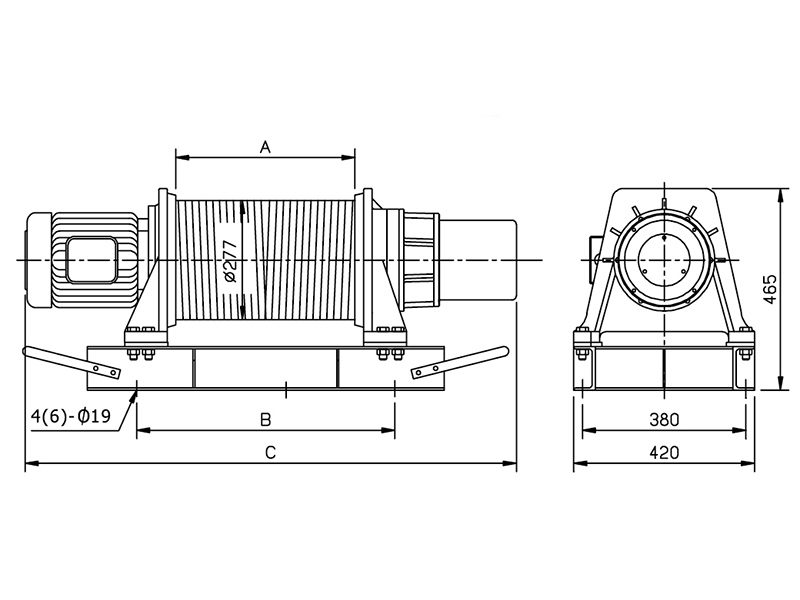

Dimension |
A mm |
427 |
522 | 812 | ||
|
B mm |
600 |
700 |
850 |
|||
|
C mm |
1170 |
1265 |
1405 |
|||
|
Net weight |
kg |
190 |
215 | 265 | ||
|
Gross weight |
kg |
240 |
265 | 315 | ||
Means Lifting Height
Note:
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- * 60 Hz motor is available upon request.
- * Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%.
