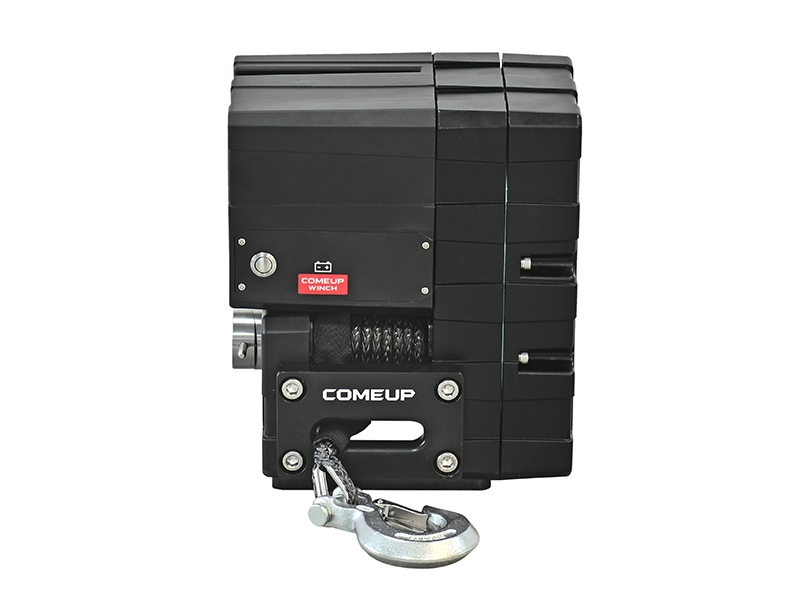

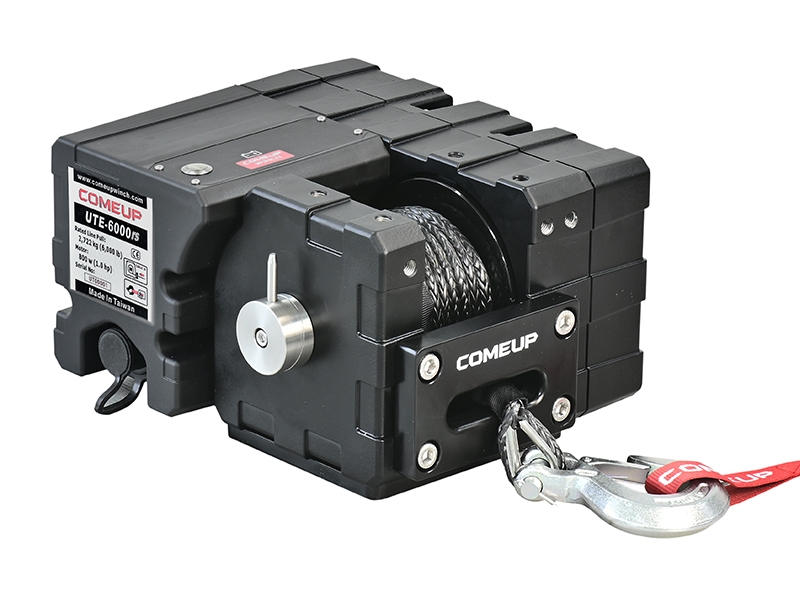

UTE-6000rs

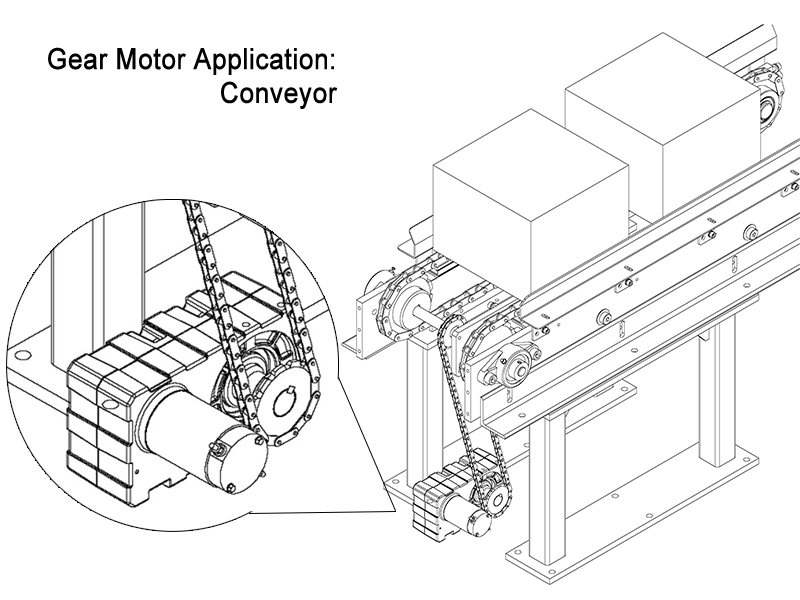

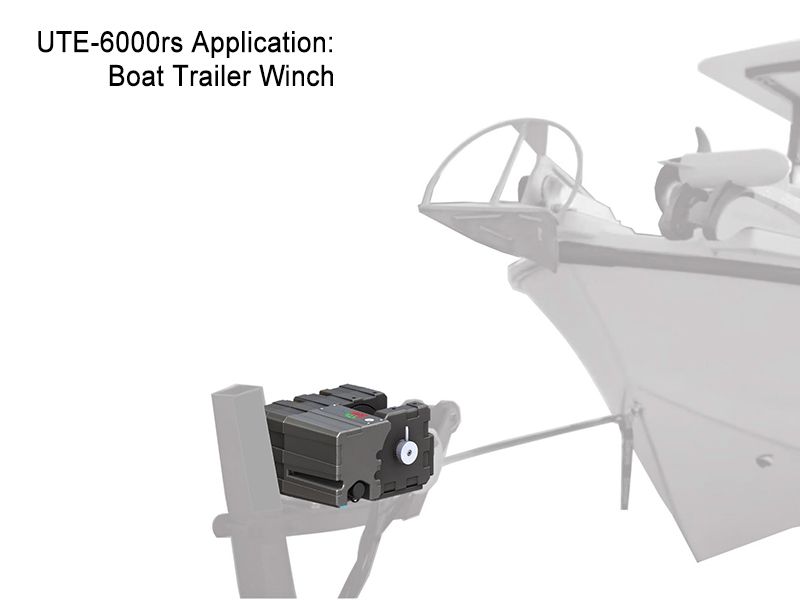

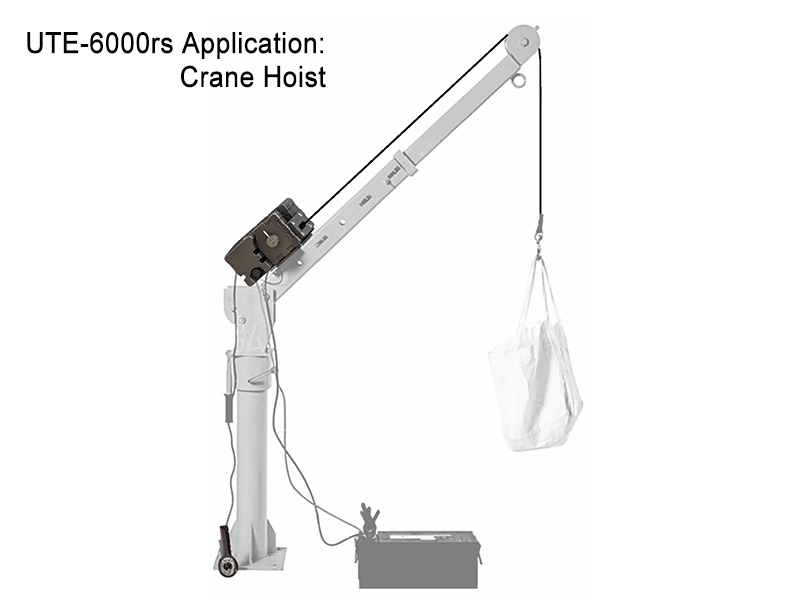

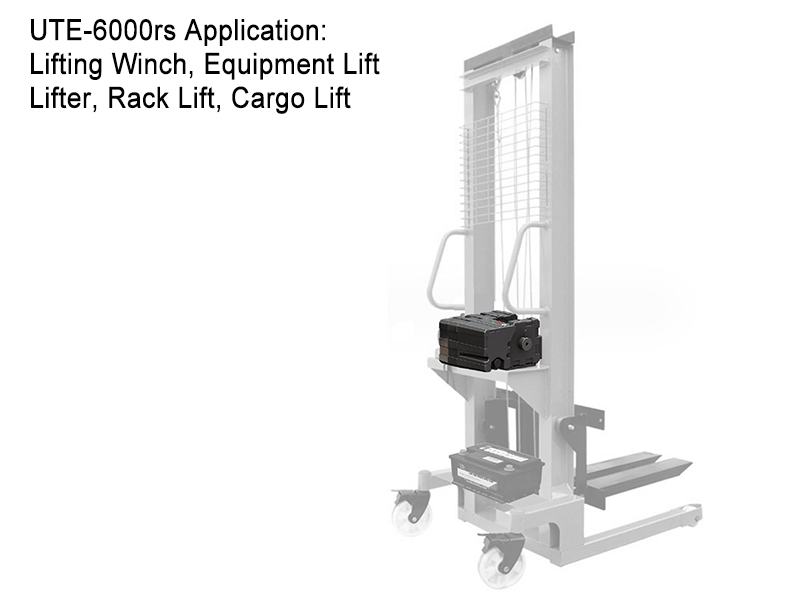

Compact and light weight allows a wide range of application. For example: crane hoist, gear motor, lifting winch, boat trailer winch, equipment lift, lifter, rack lift, cargo lift.
High torque permanent magnet motor delivers heavy line pull at lower amp and slip free dynamic brake.
Compound gear wheel gearbox delivers the most reliable and durable performance of winch under the most rugged conditions.
Sliding pin and ring gear clutch for rapid free spool.
Double mechanical ratchets brake and motor dynamic brake ensure holding the load without slippage.

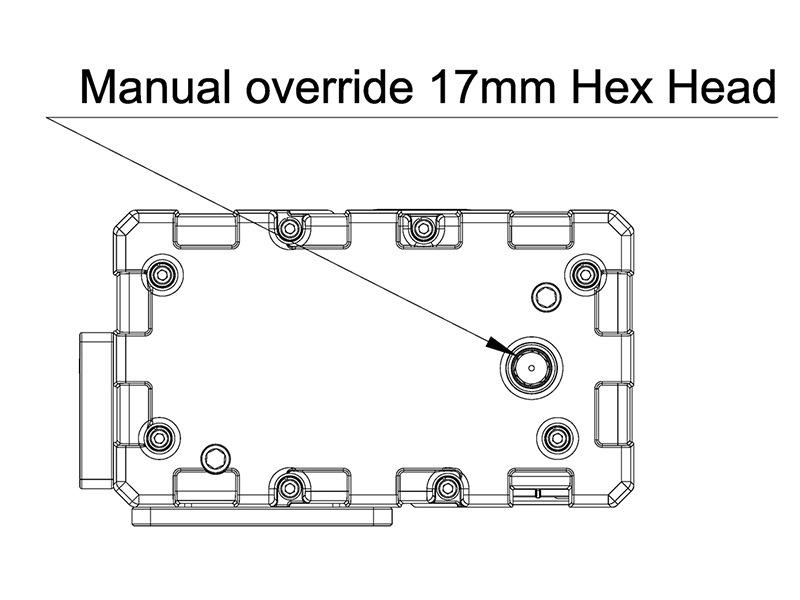

Manual override in case power is lost
12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.

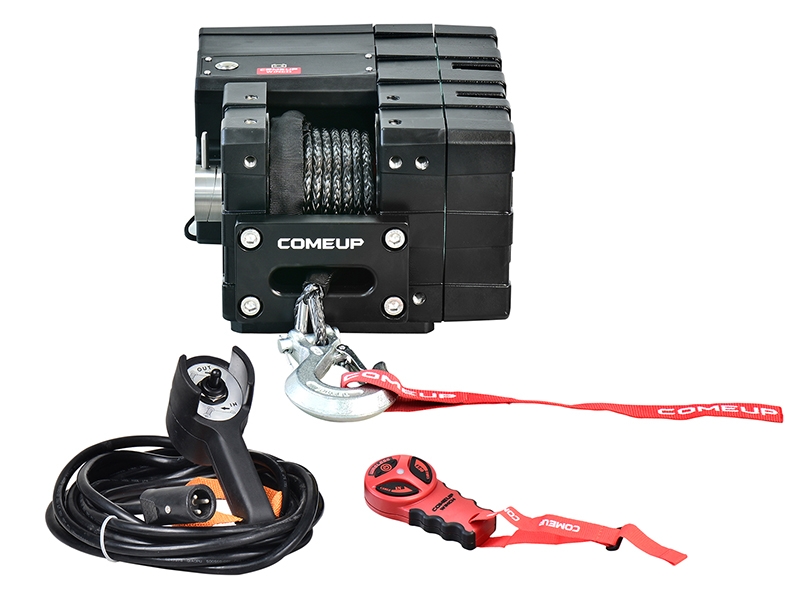

Built-in digital signal two way wireless remote control and waterproof remote control w/5 m (17’) cord.
Intelligence Dashboard (IDB) functions:
- On/Off switch prevents the vehicle battery from draining when not in use.
- With LED fan-shaped battery life indicator.
- Wireless signal icon that is continuously illuminated to confirm the wireless remote is paired with the winch.

Part number: PN 646010 (12V)
Rated line pull: 2,722 kg / 6,000 lb single line
Line speed (1^st layer): 3.5 mpm / 11.5 fpm 25A / 12 V at no load
1.3 mpm / 4.3 fpm 180A / 12V at full load
Motor: 800 w / 1.0 hp, 12V permanent magnet
Gear ratio: Compound gear 228.7 : 1
Clutch (free spooling): Turn the handle for rapid wire rope payout
Brake: Double mechanical ratchet brake and motor dynamic brake

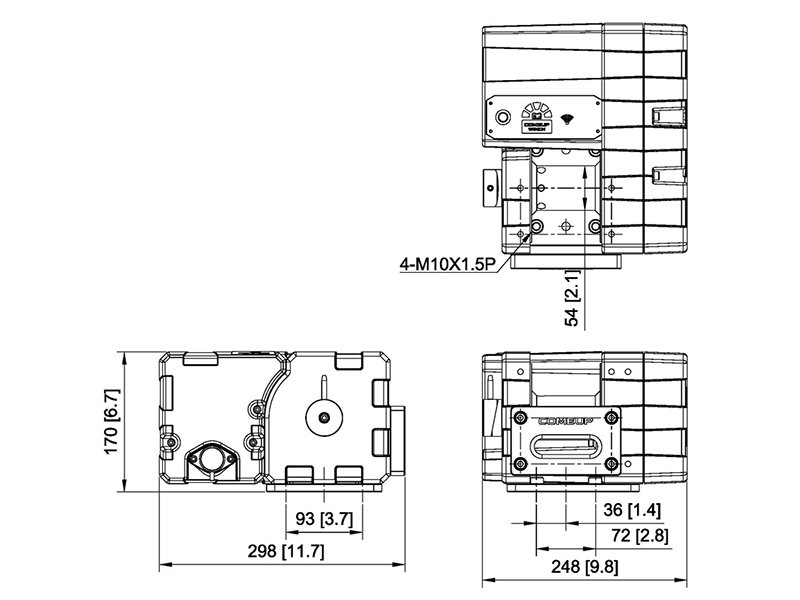

Drum size: 54 x 83 L mm (2.1” x 3.3”)
Control: Waterproof remote w/ 5 m (17') cord
Wireless remote control
Rope type: Synthetic rope
Rope size: 7.1 mm x 10.1 m (9/32” x 33’)
Mounting bolt pattern: 72 mm x 93 mm (2.8" x 3.7")
Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three (3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.
