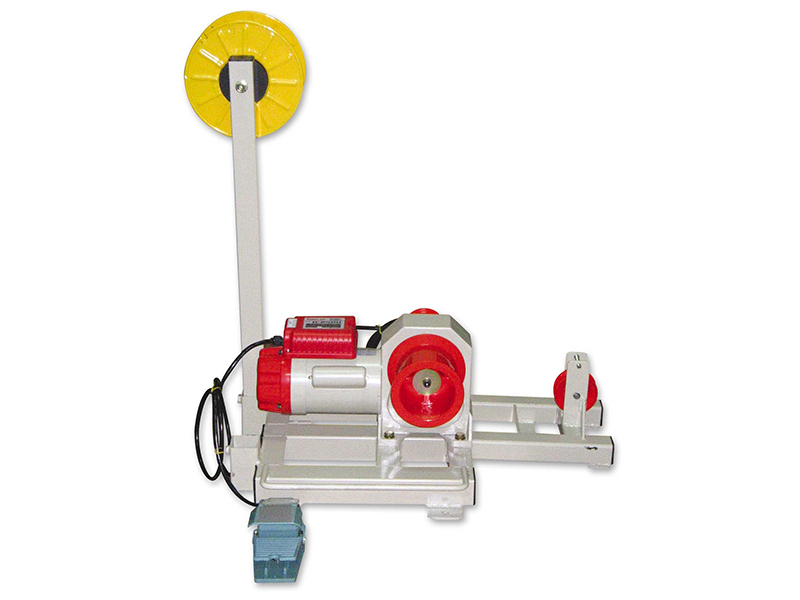

H-2500

Dual pulling capacities of 2,500 kg and 1,500 kg.
Dual speed vary according to drum size.
A overload protection switch ensure automatic shut-off.
Electromagnetic spring-applied failsafe brake.
Heavy duty high efficiency ball bearings on all running surfaces.
Rugged high power induction motor of proven reliability.
Case hardened gear train for maximum mechanical efficiency.
Suitable for continuous pulling to tackle the toughest wall, ground and underground pulling applications.

Pulling capacity:
Large drum :1,500 kg
Small drum ; 2,500 kg
Rope speed:
Large drum, 50 Hz: 4.0 m/min; 60Hz: 5.0 m/min
Small drum, 50 Hz: 2.5 m/min; 60 Hz: 3.0 m/min
Power source: 1 phase, 110V/220V/230V/240V
Motor rating IP44: 0.6 kw x 4 poles
Gear train: hypoid gear plus spur gears
Gear ratio: 154:1
Wire rope: 8 mm x 50 m
Drum length:
Large drum: 124 mm
Small drum: 104 mm
Drum dia.:
Large drum: 130 mm
Small drum: 74 mm
Drum flange dia.:
Large drum: 150 mm
Small drum 94 mm
* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Warning

A minimum of five(5) wraps of rope around the drum are necessary to support the rated load.
Do not use a cable puller as a lifting device or a hoist for vertical lifting.

Warranty

Each new puller is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Standard Accessories:

H-2500 Operation Manual

2021-07-31

PDF, 0.23 MB
